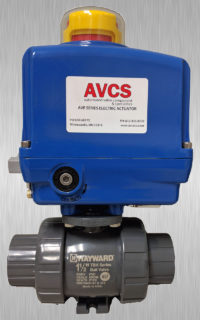

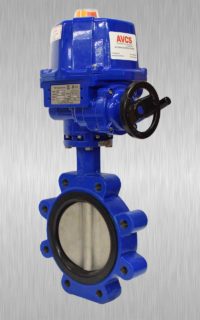

AVE SERIES

Provide rugged, reliable and accurate automation of quarter turn valves and dampers

Features & Benefits:

    • Standard enclosure IP-67, Nema 4, 4X
    • Squirrel Cage, totally enclosed motor
    • Standardized and color-coded wiring
    • 2 SPDT Auxiliary Limit Switches Standard
    • Manual override hand/auto declutch lever, automatic reset when motor energized
    • Handwheel designed for safe, efficient operation
    • Mounting includes both ISO-5211 & ABZ/Keystone Bolt Circles; removable drive bushing can be machined to match valve stem
    • Wormgear drive for longer life and low maximum noise level of 50dB
    • Indicator beacon for continuous visual indication of valve position
    • 20 watt internal heater to minimize condensation due to temperature and humidity changes
    • Cam actuated end of travel limit switches are easily adjusted to de-energize actuator for precise valve position
    • Torque switch is cam actuated and factory set to provide over torque protection for valves, standard in size AVE-15 thru AVE-250
    • Mechanical limit stops designed to prevent over-travel of quarter turn applications
    • Valve backdrive is prevented by a rolled steel wormgear and aluminum bronze wormwheel
    • CSA Approval for sizes –6 – 050, CE Approval on all sizes



AVE ELECTRIC ACTUATOR BROCHURE

 AVE COMPACT ELECTRIC ACTUATOR BROCHURE



AVE Installation and Operation Manuals

   AVE IOM Manual

   DHC 100 Modulating Controller IOM

   DHC 100 Quick Calibration Guide

   OTX 4-20mA Output, OTR 4-20mA Output and Relays

AVE Wiring Diagram’s

   AVE 006-009 Modulating WD1120M-1

   AVE 006-009 On/Off WD11202-1

   AVE 015-250 Modulating WD2120M-1

   AVE 015-250 On/Off WD21202-01
